House Plan HPR-8253

Total Living Area: 1860 Sq. Ft.
Main Level: 1160 Sq. Ft.
Second Floor: 700 Sq. Ft.
Lower Floor: 5516 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 40 Ft.    Depth: 34 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $725.00
 PDF File  $1,100.00
 Five Sets of Plans  $1,200.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00

For more details about our plan packages click here

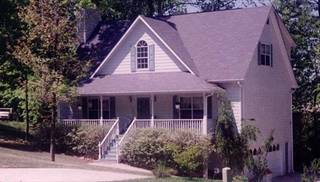

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

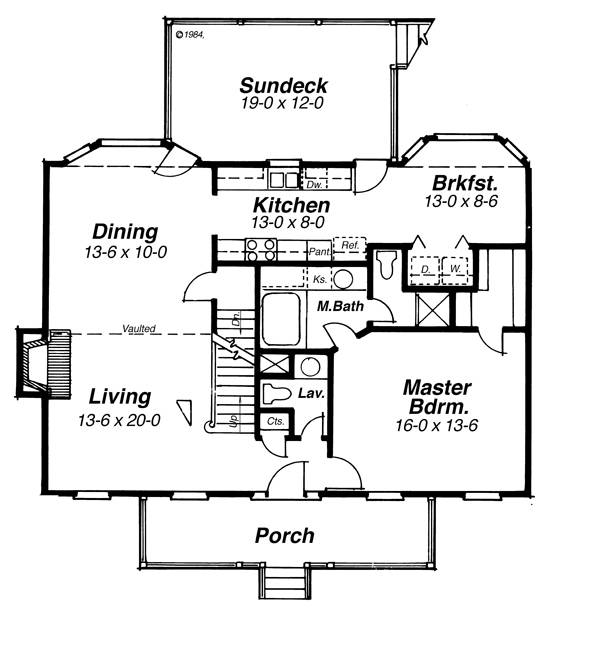

First Floor:
First Floor image of MACKENZIE House Plan
© copyright by designer

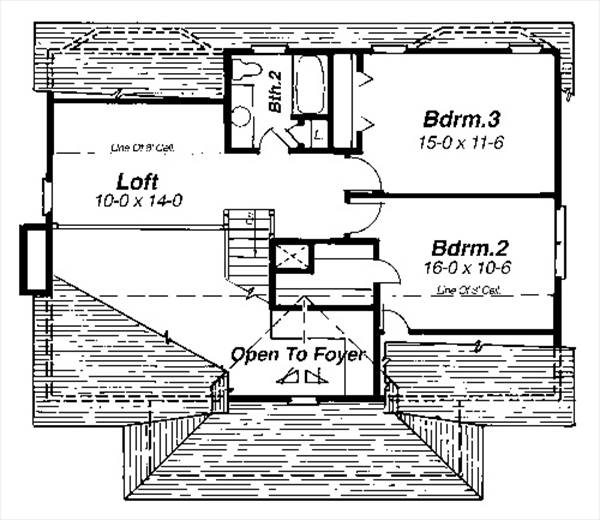

Second Floor:
Second Floor image of MACKENZIE House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:40' 0"
Depth:34' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Cape Cod
Cottage
Country
Mountain
Vacation
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1160 Sq. Ft.
Upper Level: 700 Sq. Ft.
Lower Level:5516 Sq. Ft.
Total: 1860 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:616 Sq. Ft.
Porch:168 Sq. Ft.
Deck:225 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:23' 5"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Gable:12/12
Porch:4/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Deck
Drive-under
Fireplace
Front Porch
Great Room
Laundry 1st Fl
Loft / Balcony
  KEY FEATURES
Master Bdrm Main Floor
Nook / Breakfast Area
Split Bedrooms
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
