House Plan HPR-8241

Total Living Area: 1181 Sq. Ft.
Main Level: 1181 Sq. Ft.
Lower Floor: 32 Sq. Ft.
Bonus: 405 Sq. Ft.
Bedrooms: 3
Full Baths: 2
Width: 47 Ft.    Depth: 28 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $600.00
 Vellums  $875.00
 PDF File  $875.00
 Five Sets of Plans  $950.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $50.00
 Mirror Reverse  $50.00
 Materials List  $60.00
 Right Read Reverse  $250.00
 Conversion to 2 x 6 Walls  $200.00

For more details about our plan packages click here

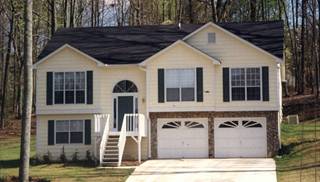

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

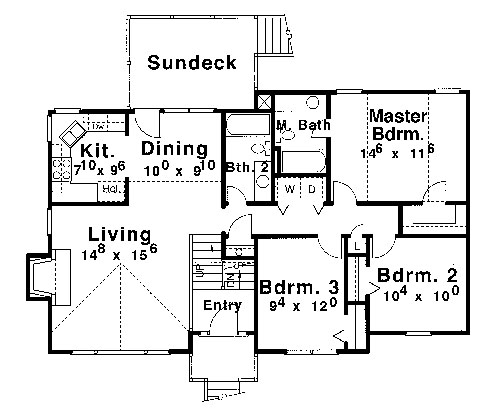

Floor Plan:
Floor Plan image of DONAHUE House Plan
© copyright by designer

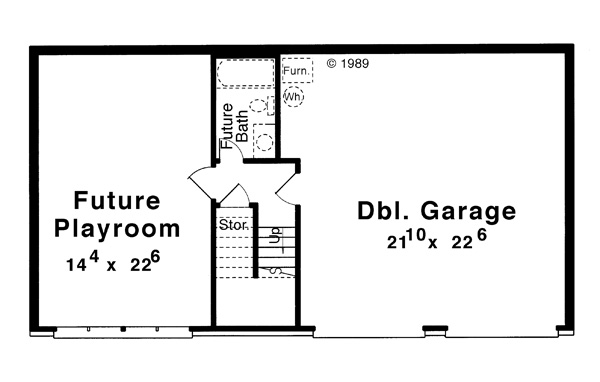

Lower Level:
Lower Level image of DONAHUE House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:47' 0"
Depth:28' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Traditional
European
PDFs Fast!
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:1181 Sq. Ft.
Lower Level:32 Sq. Ft.
Total: 1181 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:528 Sq. Ft.
Deck:120 Sq. Ft.
Bonus Room:405 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Maximum House Height:22' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:7/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:30
  KEY FEATURES
2 Story Volume
Deck
Drive-under
Fireplace
Foyer
Great Room
Laundry 1st Fl
  KEY FEATURES
Open Floor Plan
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
