House Plan HPR-8070

ENERGY STAR Total Living Area: 2600 Sq. Ft.
Main Level: 1510 Sq. Ft.
Second Floor: 1090 Sq. Ft.
Lower Floor: 1618 Sq. Ft.
Bedrooms: 4
Full Baths: 2, Half Baths: 1
Width: 55 Ft.    Depth: 52 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $800.00
 PDF File  $1,250.00
 Five Sets of Plans  $1,350.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

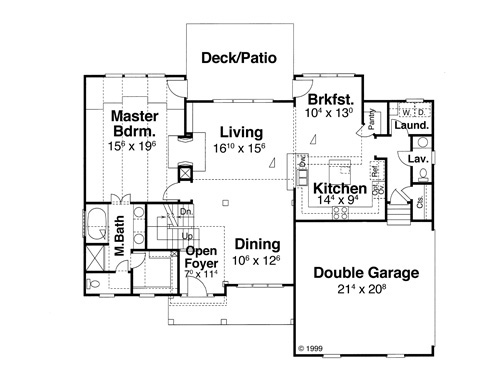

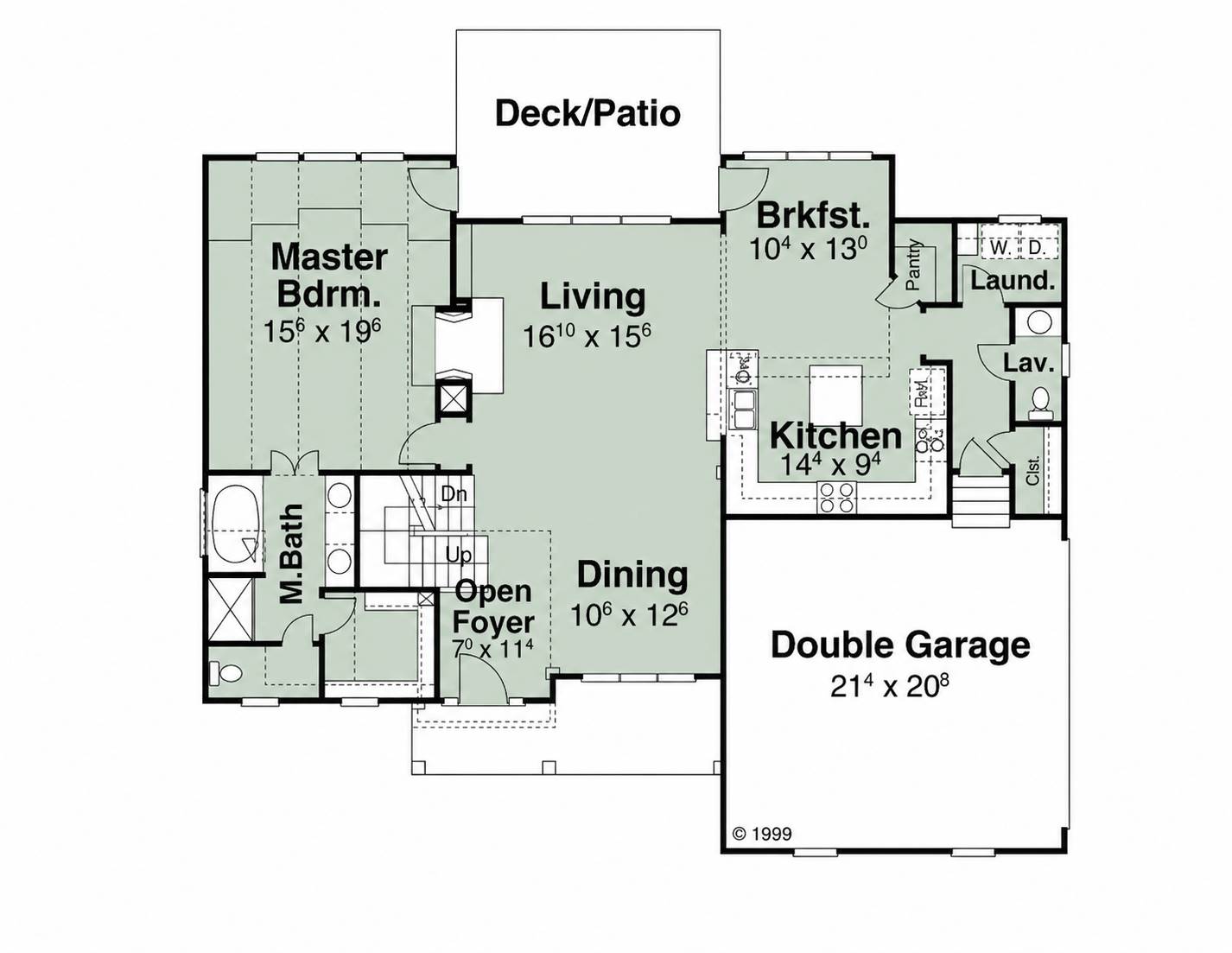

First Floor:
First Floor image of ORTEGA House Plan
© copyright by designer

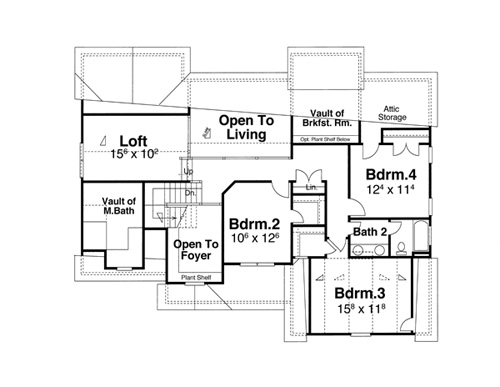

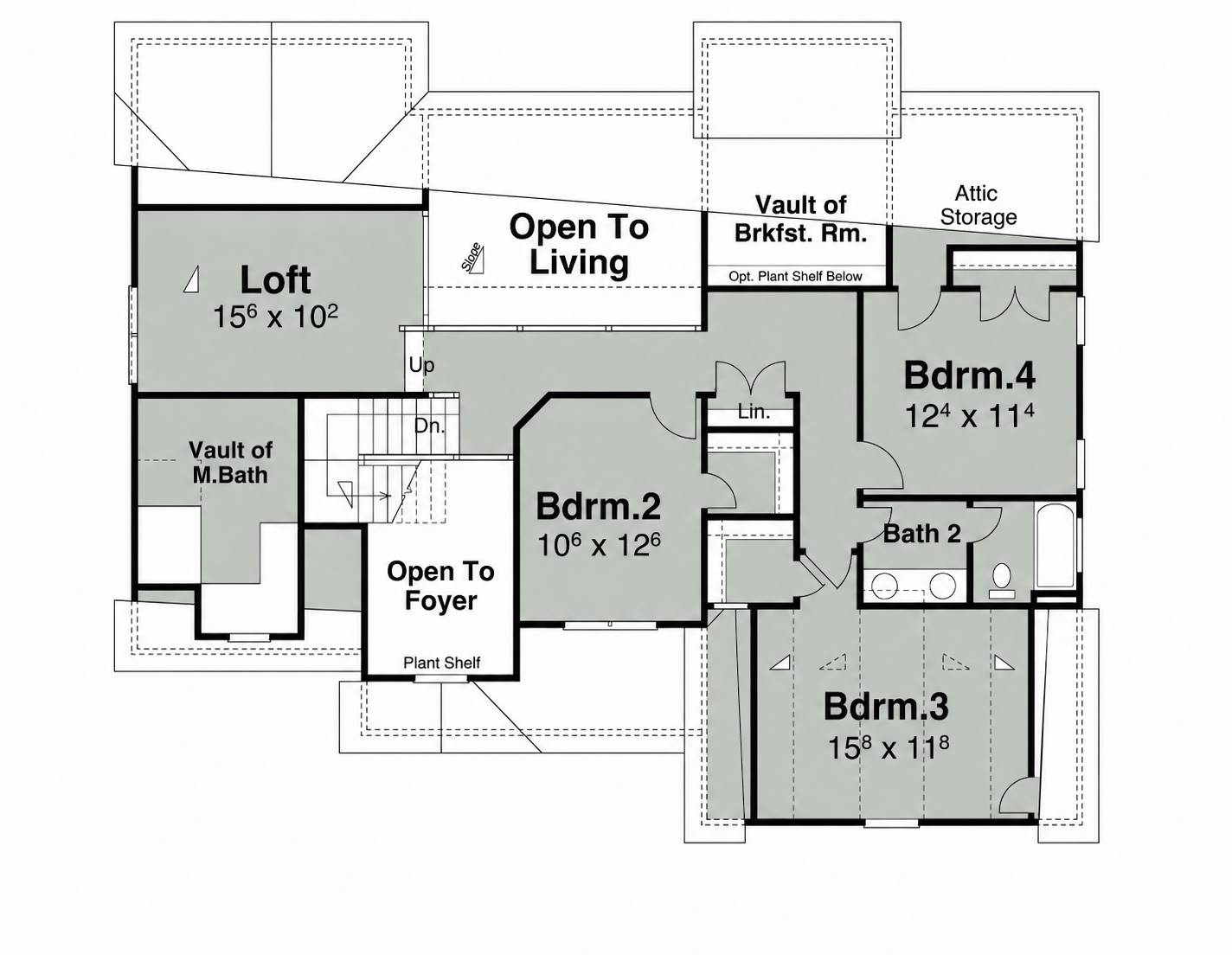

Second Floor:
Second Floor image of ORTEGA House Plan
© copyright by designer

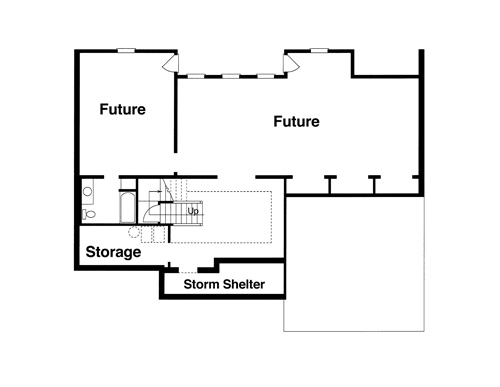

Lower Level:
Lower Level image of ORTEGA House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:55' 0"
Depth:52' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Southern
PDFs Fast!
Old House Classics
Tennessee
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1510 Sq. Ft.
Upper Level: 1090 Sq. Ft.
Lower Level:1618 Sq. Ft.
Total: 2600 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:462 Sq. Ft.
Porch:108 Sq. Ft.
Deck:200 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:29' 4"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/12
Gable:12/12
Dormer:12/12
Porch:3/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Story Volume
Attached
Basement
Bonus Room
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
  KEY FEATURES
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Side-entry
Sitting Area
Storage Space
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Vaulted Foyer
Vaulted Great Room/Living
Walk-in Closet
Walk-in Pantry
Walkout Basement
