House Plan HPR-6946

Total Living Area: 528 Sq. Ft.
Main Level: 670 Sq. Ft.
Second Floor: 528 Sq. Ft.
Bedrooms: 1
Full Baths: 1
Width: 32 Ft.    Depth: 28 Ft.
Garage Size: 2
Foundation: Slab
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $300.00
 PDF File  $850.00
 Five Sets of Plans  $950.00
FOUNDATION OPTIONS
 Slab  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $60.00
 Right Read Reverse  $550.00

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

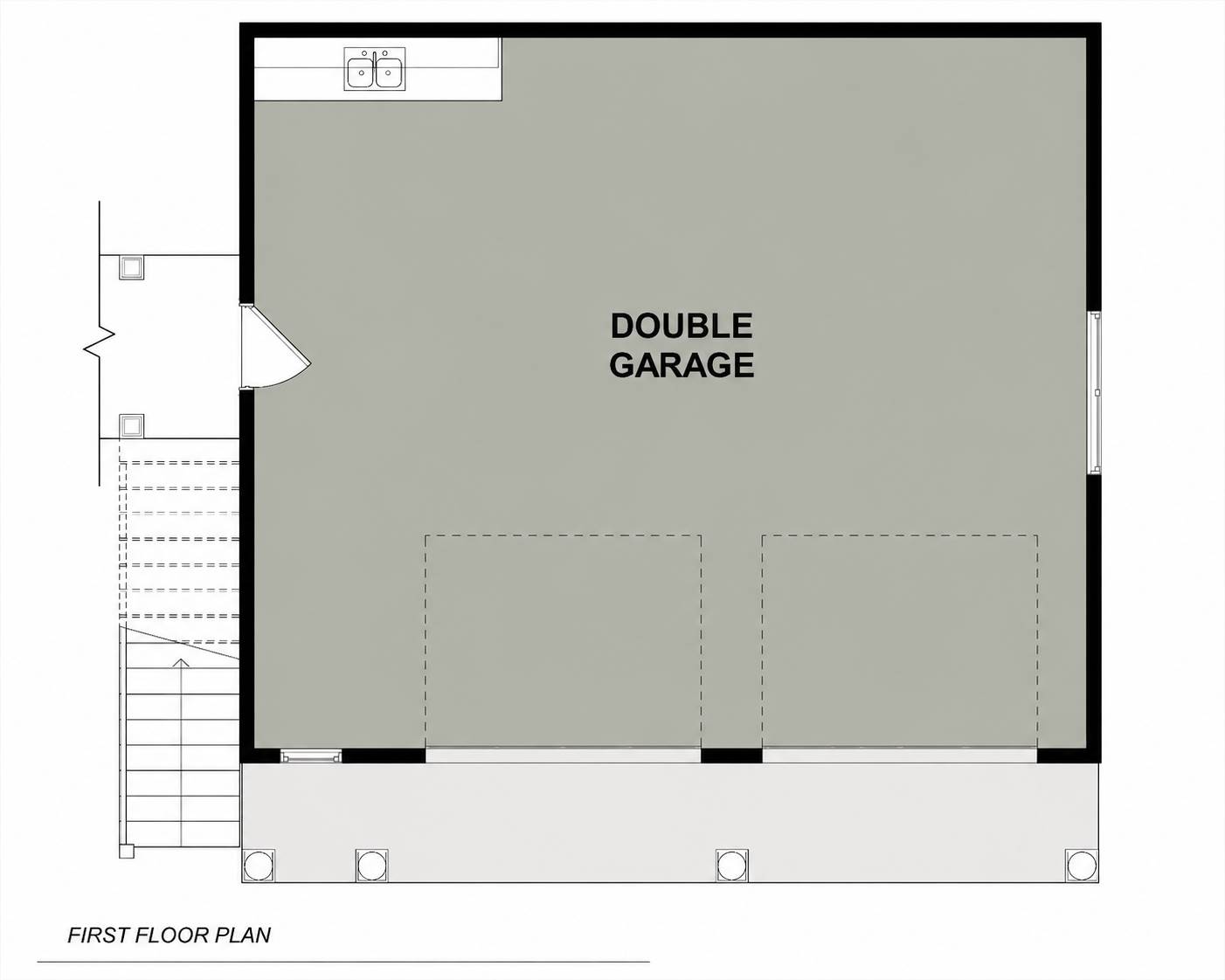

1st Floor:
1st Floor image of Pickett House Plan
© copyright by designer

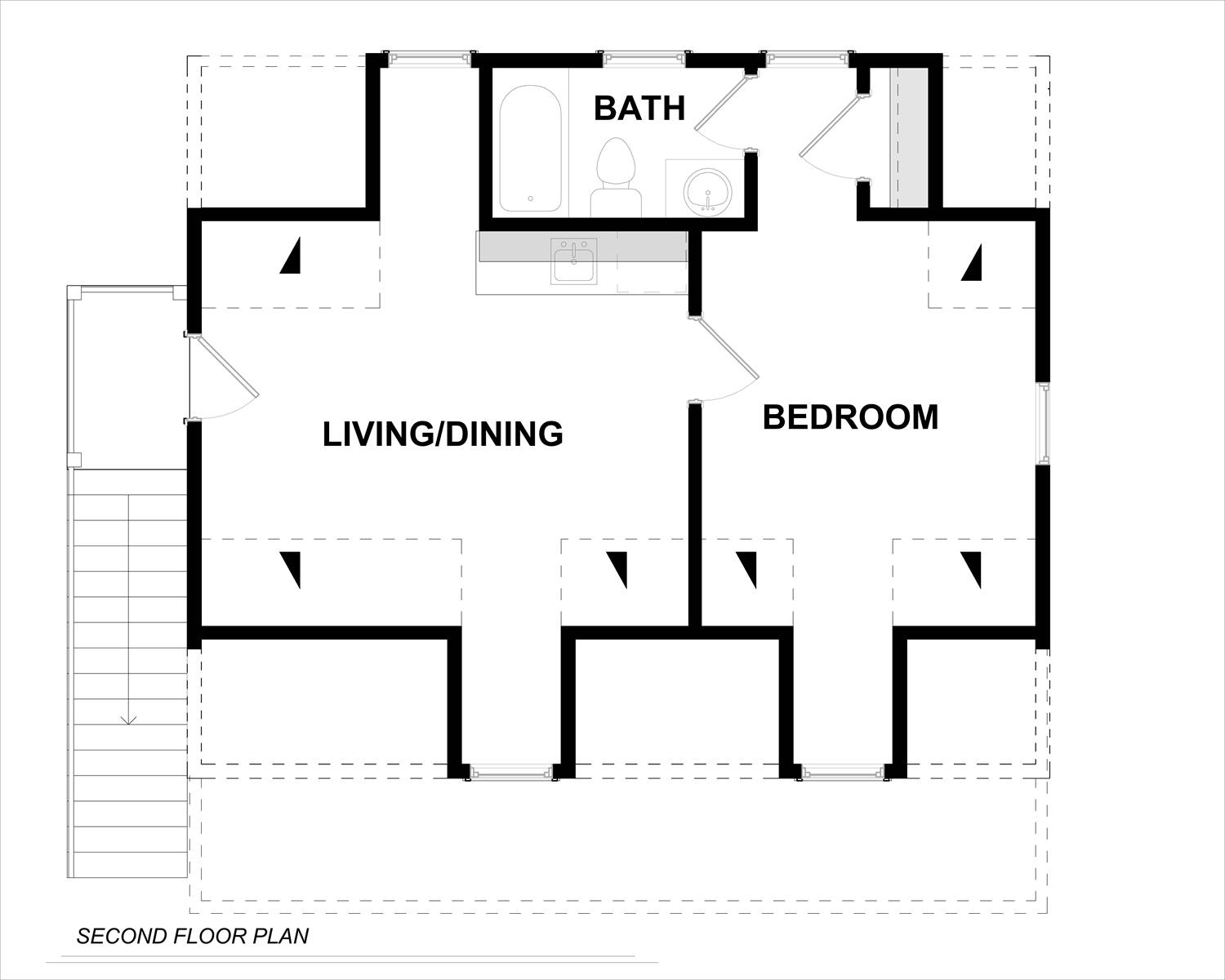

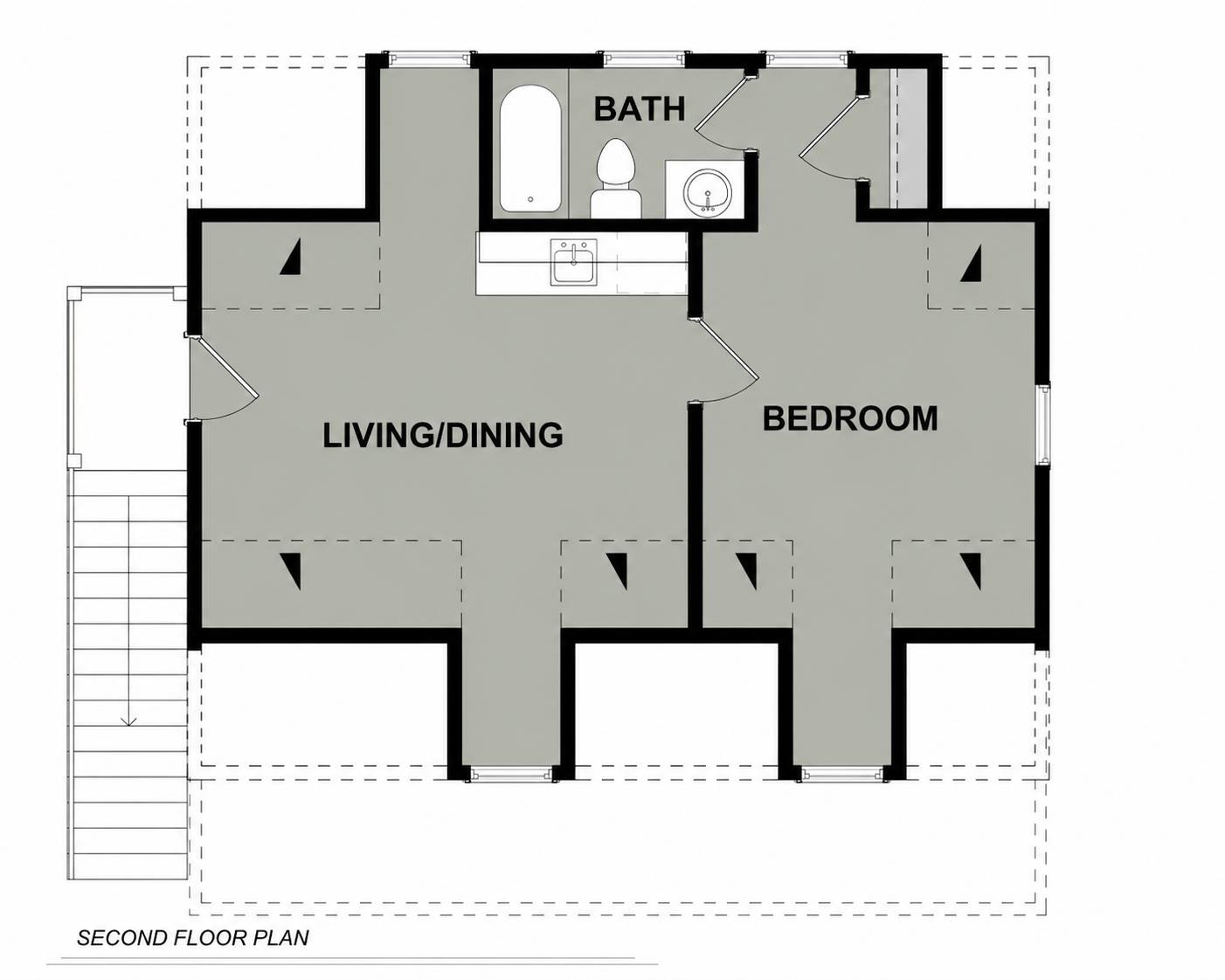

2nd Floor:
2nd Floor image of Pickett House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:32' 0"
Depth:28' 0"
Dwelling Number:Garage
Bonus Access:2nd Floor
  EXTERIOR STYLE
Cottage
Southern
Traditional
Country
  NUMBERS OF ROOMS
Bedrooms:1
Full Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:670 Sq. Ft.
Upper Level: 528 Sq. Ft.
Total: 528 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:672 Sq. Ft.
  GARAGE
Garage Type:
Garage Size:2
  FOUNDATION
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:23' 7"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Dormer:12/12
Porch:4/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Detached
Front-entry
Great Room
Guest Suite
Master Bdrm Upstairs
No Porch
  KEY FEATURES
Open Floor Plan
Suited for corner lot
Suited for narrow lot
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
