House Plan HPR-5846

Total Living Area: 1667 Sq. Ft.
Main Level: 1667 Sq. Ft.
Lower Floor: 800 Sq. Ft.
Bedrooms: 3
Full Baths: 2
Width: 54 Ft.    Depth: 30 Ft.
Garage Size: 2
Foundation: Basement Alternate, WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $725.00
 PDF File  $1,100.00
 Five Sets of Plans  $1,200.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
 Basement Alternate  $500.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $60.00
 Right Read Reverse  $650.00
 Conversion to 2 x 6 Walls  $500.00

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

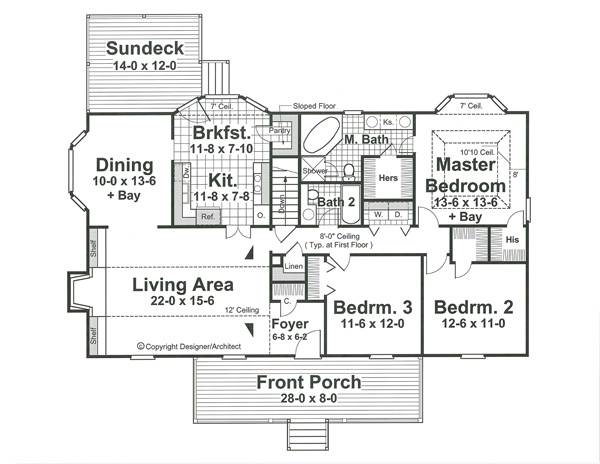

Floor Plan:
Floor Plan image of Chamblee House Plan
© copyright by designer

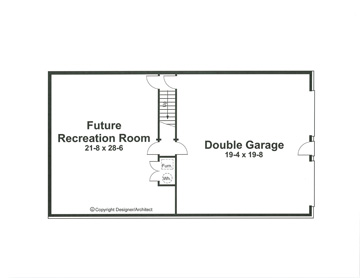

Lower Level:
Lower Level image of Chamblee House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:54' 0"
Depth:30' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Farmhouse
Country
Ranch
PDFs Fast!
Old House Classics
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:1667 Sq. Ft.
Lower Level:800 Sq. Ft.
Total: 1667 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:835 Sq. Ft.
Porch:224 Sq. Ft.
Deck:168 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Basement Alternate
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Maximum House Height:18' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:6/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Drive-under
Fireplace
Foyer
  KEY FEATURES
Front Porch
His and Hers Master Closets
Laundry 1st Fl
Nook / Breakfast Area
Suited for sloping lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
