House Plan HPR-5841

Total Living Area: 1577 Sq. Ft.
Main Level: 737 Sq. Ft.
Second Floor: 840 Sq. Ft.
Lower Floor: 737 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 36 Ft.    Depth: 42 Ft.
Garage Size: 2
Foundation: Slab, if shown as a standard option
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $625.00
 PDF File  $975.00
 Vellums  $975.00
 Five Sets of Plans  $1,100.00
FOUNDATION OPTIONS
 Slab, if shown as a standard option  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $50.00
 Mirror Reverse  $50.00
 Right Read Reverse  $250.00
 New Foundation Type  $300.00
 Conversion to 2 x 6 Walls  $200.00
 Plan Modifications  $400.00

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

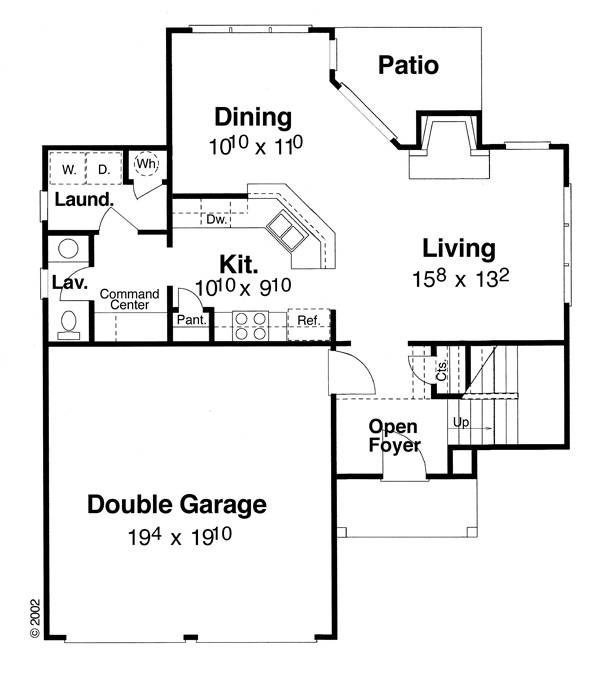

First Floor:
First Floor image of Highlands House Plan
© copyright by designer

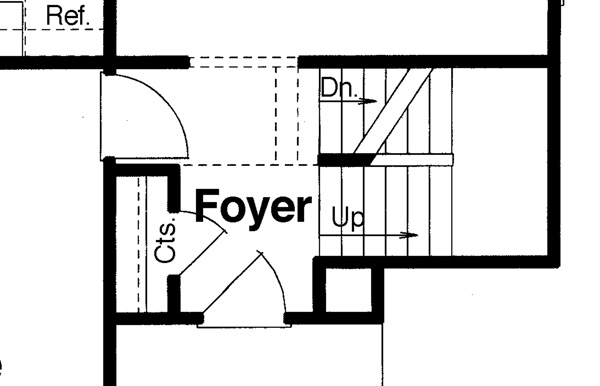

Basement Option:
Basement Option image of Highlands House Plan
© copyright by designer

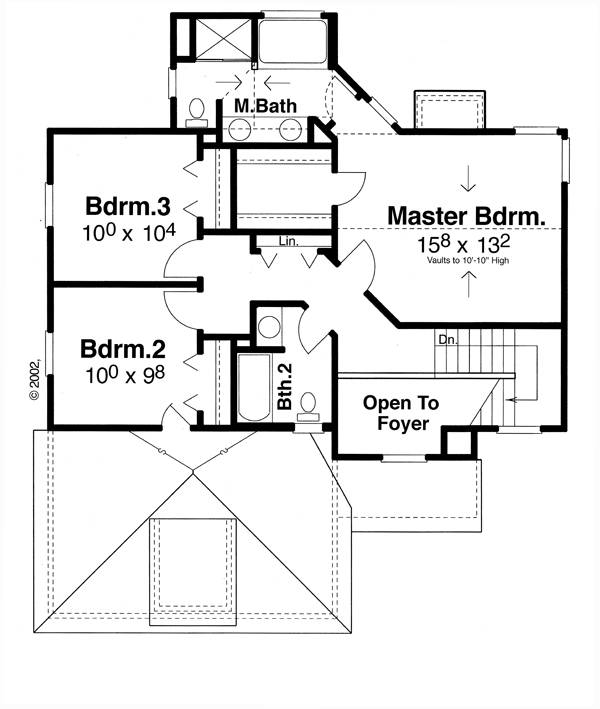

Second Floor:
Second Floor image of Highlands House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:36' 0"
Depth:42' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Cottage
Craftsman
Bungalow
PDFs Fast!
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:737 Sq. Ft.
Upper Level: 840 Sq. Ft.
Lower Level:737 Sq. Ft.
Total: 1577 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:400 Sq. Ft.
Porch:40 Sq. Ft.
Patio:80 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Slab, if shown as a standard option
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:27' 2"
  FRAMING INFORMATION
Roof Framing:Truss
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/12
Gable:9/12
Dormer:5/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Story Volume
Attached
Covered Front Porch
Double Vanity Sink
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Loft / Balcony
  KEY FEATURES
Master Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Suited for narrow lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
