House Plan HPR-5840

Total Living Area: 1514 Sq. Ft.
Main Level: 1514 Sq. Ft.
Lower Floor: 1514 Sq. Ft.
Bedrooms: 3
Full Baths: 2
Width: 37 Ft.    Depth: 61 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $725.00
 PDF File  $1,100.00
 Five Sets of Plans  $1,200.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

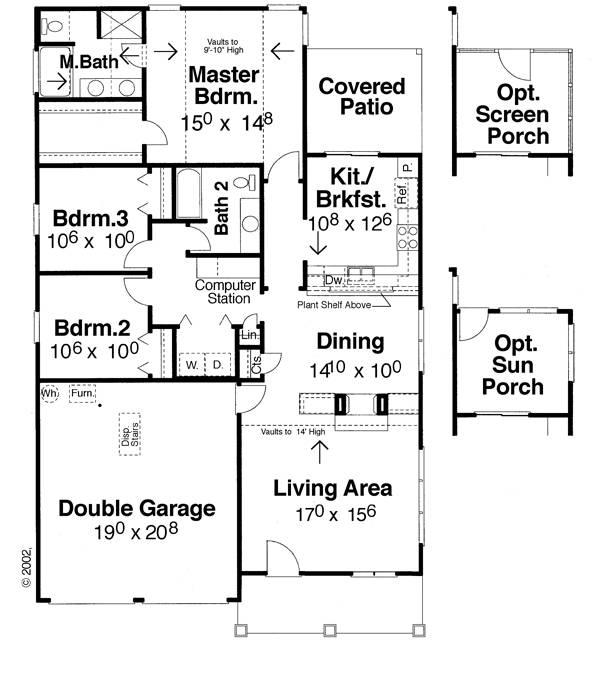

Floor Plan:
Floor Plan image of Rosemary House Plan
© copyright by designer
Basement Option:
Basement Option image of Rosemary House Plan
© copyright by designer

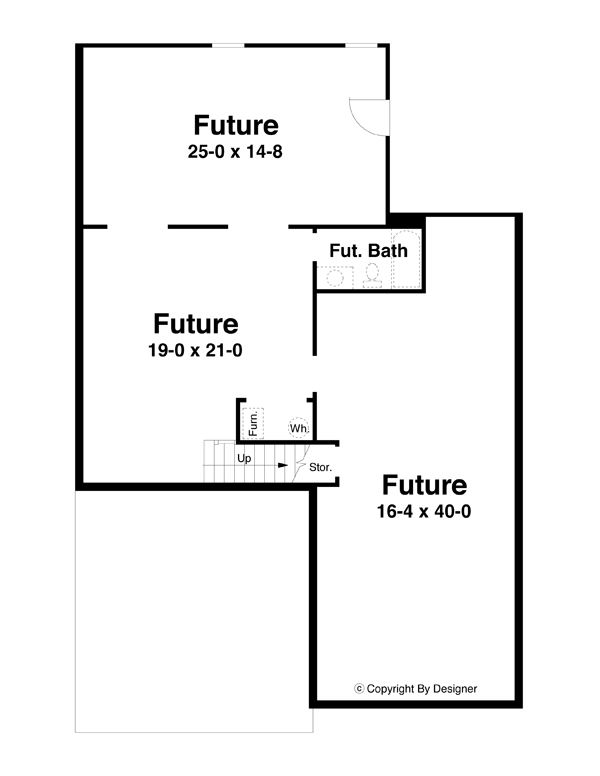

Lower Level:
Lower Level image of Rosemary House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:37' 0"
Depth:61' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Cottage
Craftsman
Bungalow
PDFs Fast!
Old House Classics
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:1514 Sq. Ft.
Lower Level:1514 Sq. Ft.
Total: 1514 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:420 Sq. Ft.
Porch:85 Sq. Ft.
Patio:110 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Maximum House Height:25' 0"
  FRAMING INFORMATION
Roof Framing:Truss
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:7/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Front Porch
Front-entry
Great Room
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
  KEY FEATURES
Peninsula / Eating Bar
Rear Porch
Screened Porch/Sunroom
Separate Tub and Shower
Slab
Split Bedrooms
Storage Space
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
