House Plan HPR-5839

ENERGY STAR Total Living Area: 3302 Sq. Ft.
Main Level: 3302 Sq. Ft.
Bonus: 395 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 91 Ft.    Depth: 83 Ft.
Garage Size: 2
Foundation: Basement Alternate, Slab
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $900.00
 PDF File  $1,400.00
 Vellums  $1,550.00
 Five Sets of Plans  $1,550.00
FOUNDATION OPTIONS
 Slab  $0.00
 Basement Alternate  $600.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $75.00
 Materials List  $75.00
 Right Read Reverse  $850.00
 Conversion to 2 x 6 Walls  $600.00

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

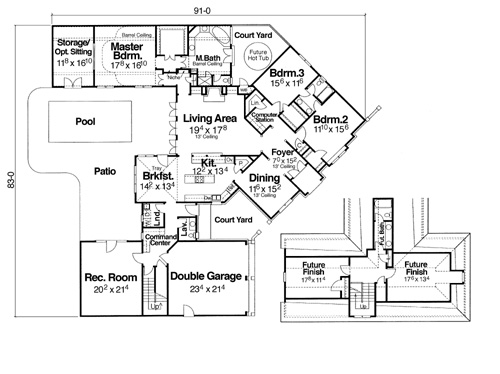

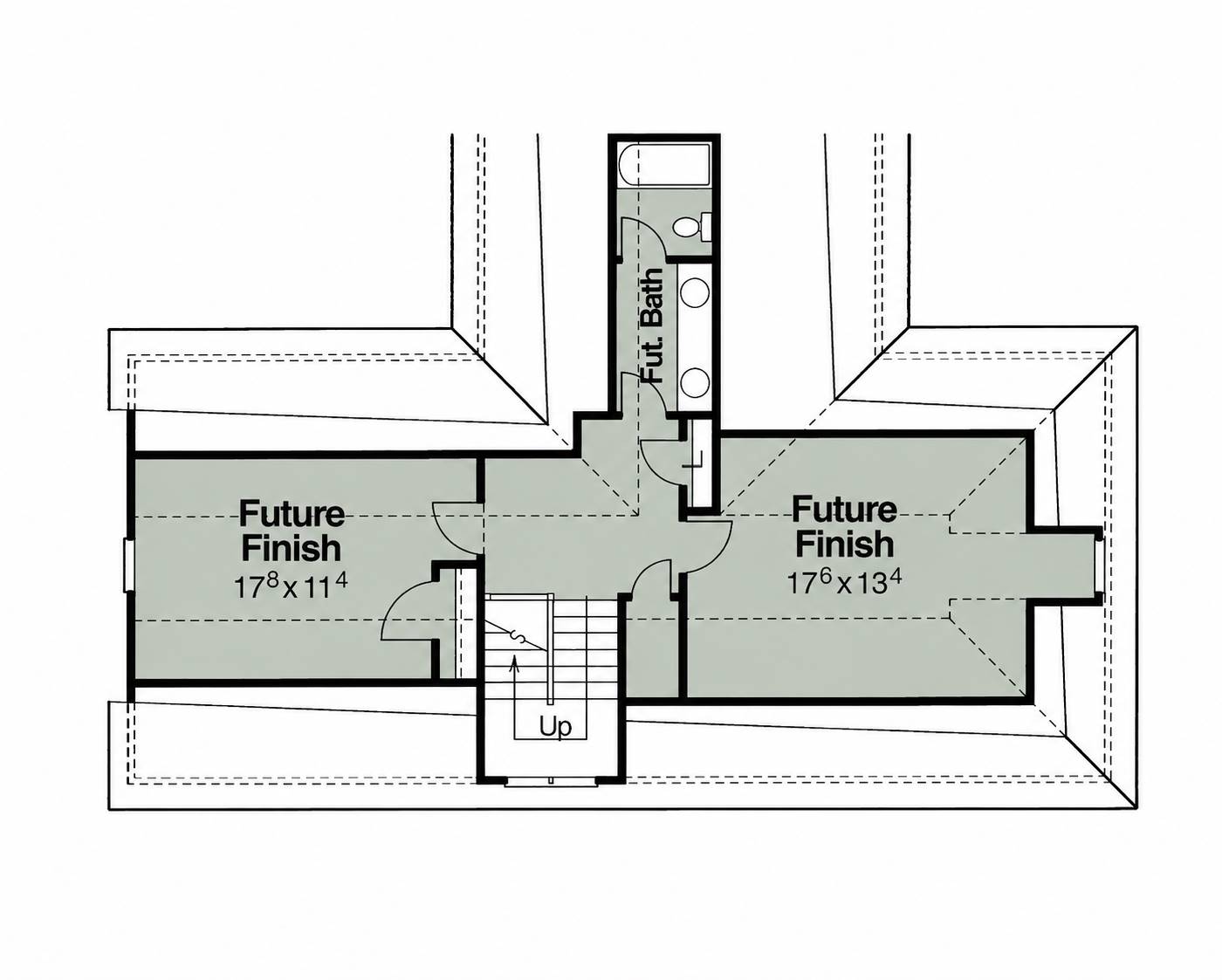

Floor Plan:
Floor Plan image of Winthrop House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:91' 0"
Depth:83' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
European
French Country
PDFs Fast!
Old House Classics
Luxury
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:3302 Sq. Ft.
Total: 3302 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:528 Sq. Ft.
Patio:1260 Sq. Ft.
Bonus Room:395 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Basement Alternate
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Maximum House Height:30' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Gable:12/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Story Volume
Attached
Basement
Bonus Room
Courtyard
Covered Front Porch
Daylight Basement
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front-entry
Home Office
  KEY FEATURES
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rec Room
Separate Tub and Shower
Sitting Area
Split Bedrooms
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
