House Plan HPR-5835

Total Living Area: 2614 Sq. Ft.
Main Level: 2614 Sq. Ft.
Lower Floor: 2614 Sq. Ft.
Bonus: 1681 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 70 Ft. 10 In.    Depth: 78 Ft. 9 In.
Garage Size: 2
Foundation: Crawl alternate, Slab alternate, WALK OUT BASEMENT
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $850.00
 PDF File  $1,325.00
 Five Sets of Plans  $1,450.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
 Crawl alternate  $600.00
 Slab alternate  $600.00
ADDITIONAL PLAN OPTIONS
 Right Read Reverse  $800.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

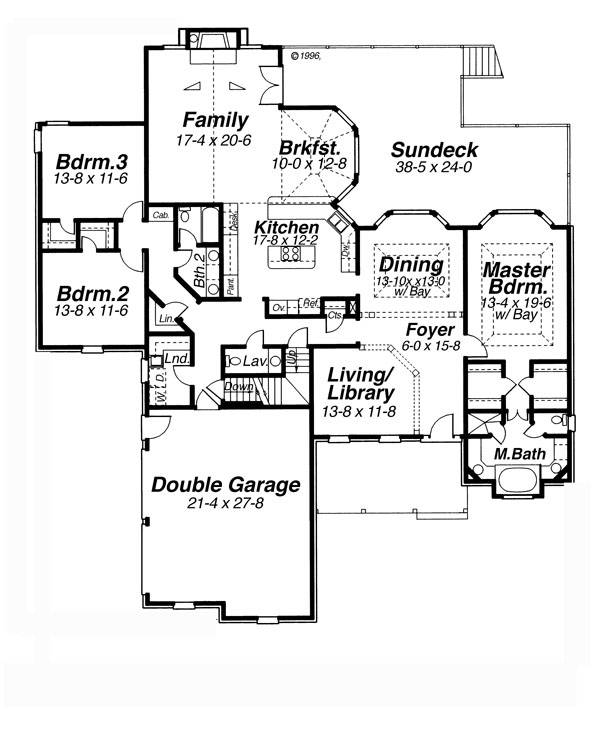

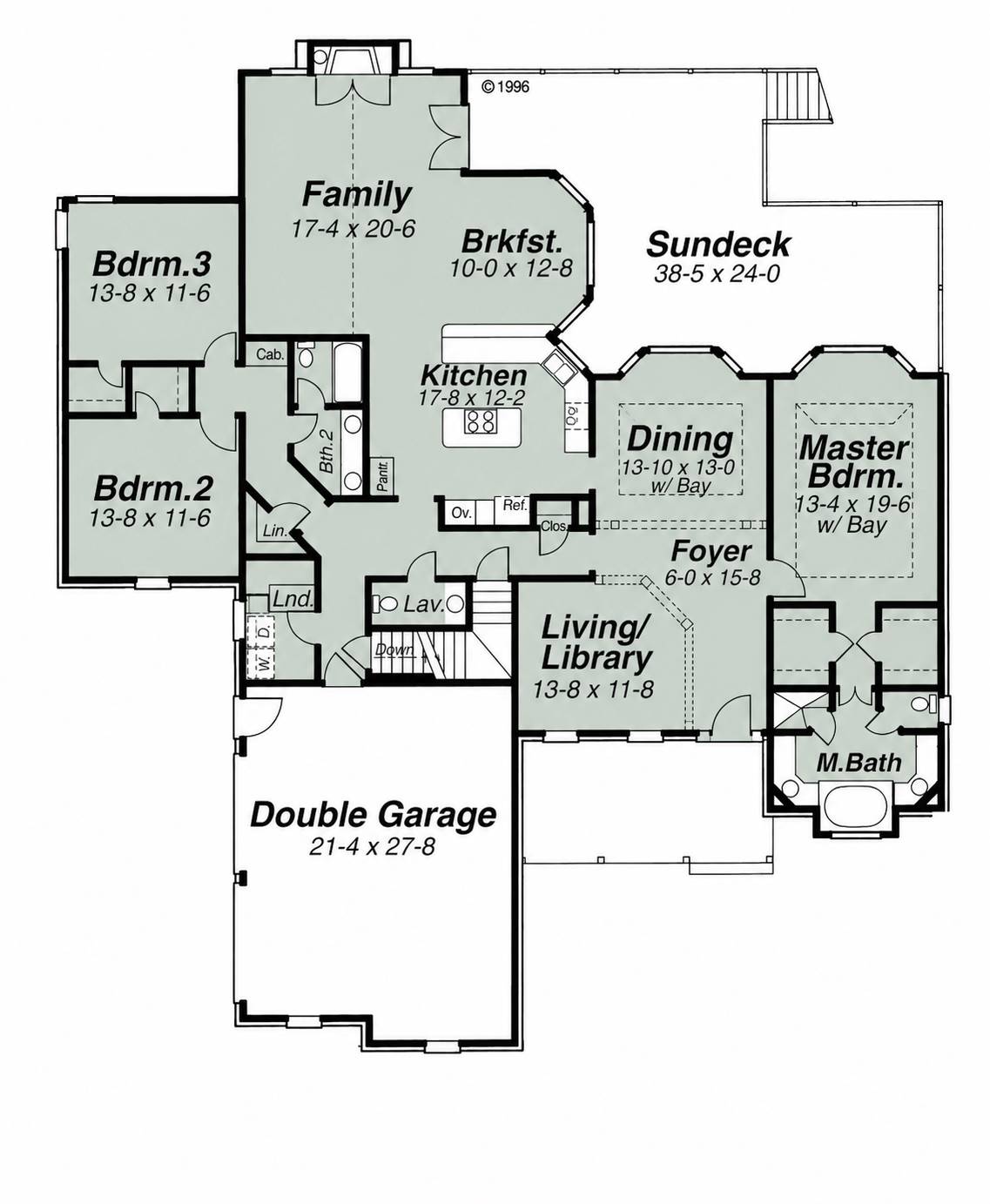

Floor Plan:
Floor Plan image of Essex House Plan
© copyright by designer

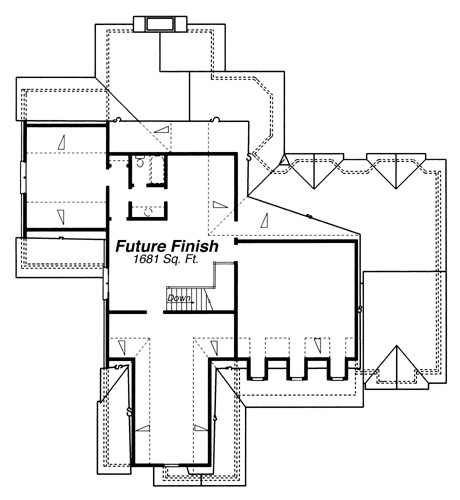

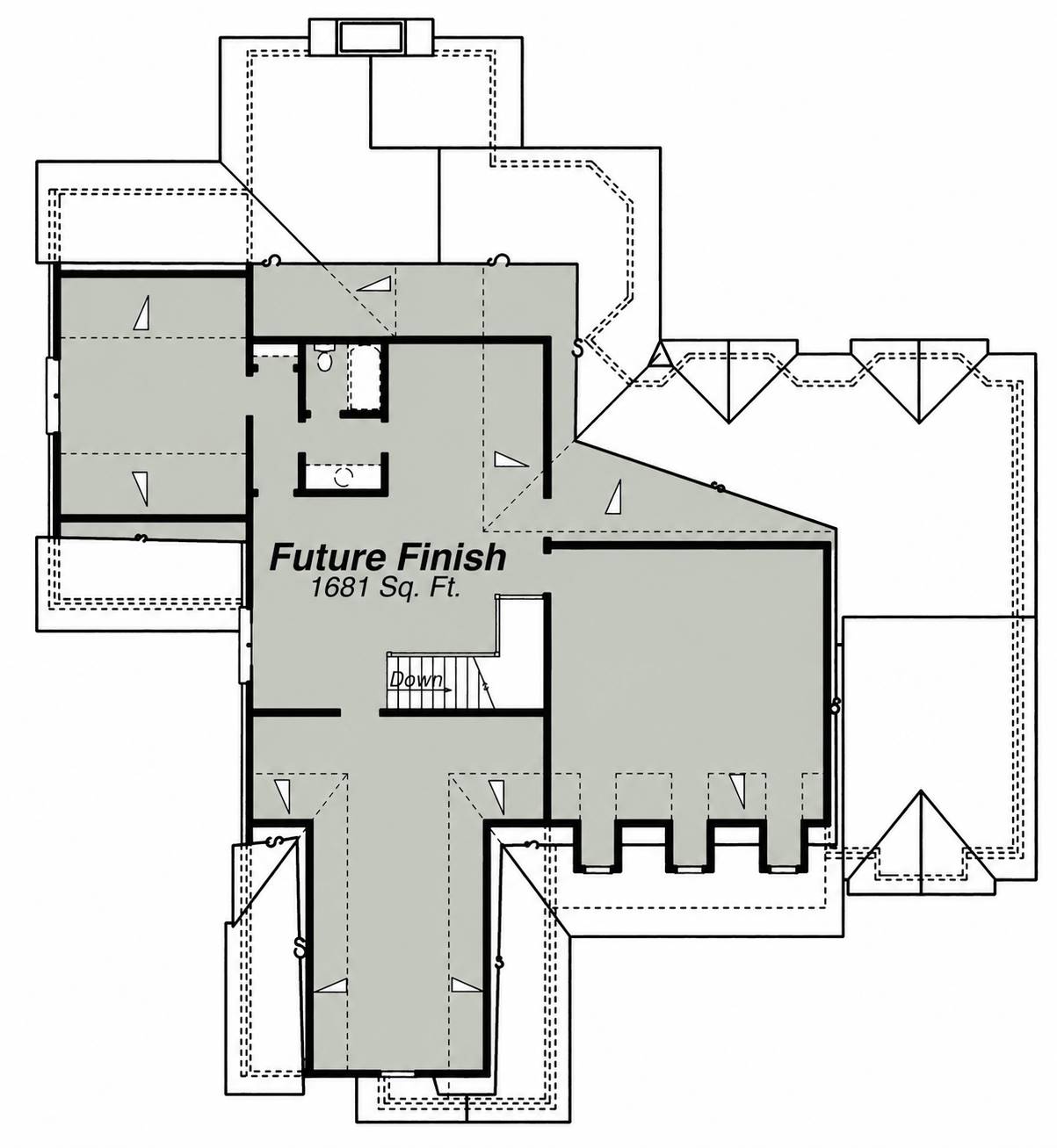

Attic:
Attic image of Essex House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:70' 10"
Depth:78' 9"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Farmhouse
Ranch
PDFs Fast!
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:2614 Sq. Ft.
Lower Level:2614 Sq. Ft.
Total: 2614 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:592 Sq. Ft.
Porch:160 Sq. Ft.
Deck:572 Sq. Ft.
Bonus Room:1681 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Crawl alternate
Slab alternate
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:27' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/12
Gable:12/12
Dormer:12/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Arches
Attached
Basement
Bonus Room
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
His and Hers Master Closets
Laundry 1st Fl
  KEY FEATURES
Library/Media Rm
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Sitting Area
Split Bedrooms
Suited for sloping lot
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
