House Plan HPR-5830

Total Living Area: 2880 Sq. Ft.
Main Level: 1294 Sq. Ft.
Second Floor: 1220 Sq. Ft.
Lower Floor: 1294 Sq. Ft.
Bonus: 366 Sq. Ft.
Bedrooms: 4
Full Baths: 3, Half Baths: 1
Width: 38 Ft.    Depth: 76 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $850.00
 PDF File  $1,325.00
 Five Sets of Plans  $1,450.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS
 Right Read Reverse  $800.00

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

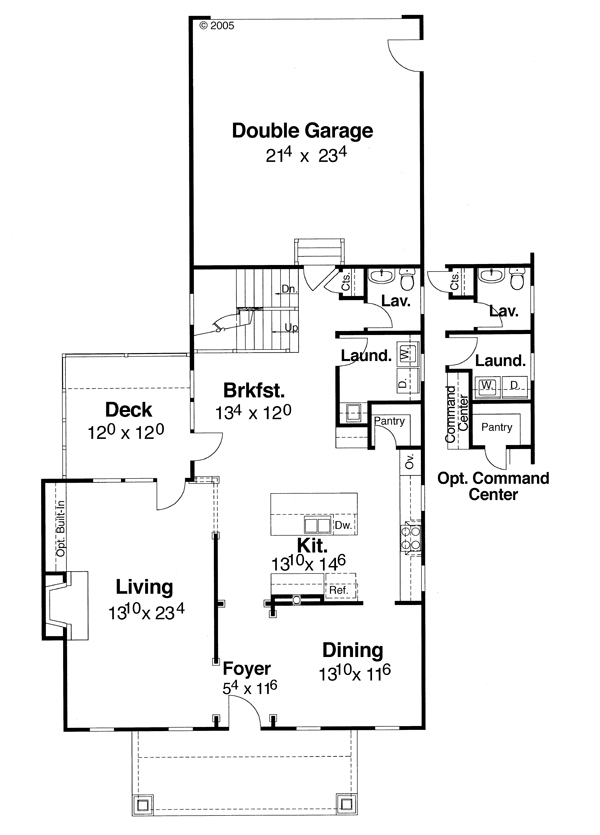

First Floor:
First Floor image of Chadwick House Plan
© copyright by designer

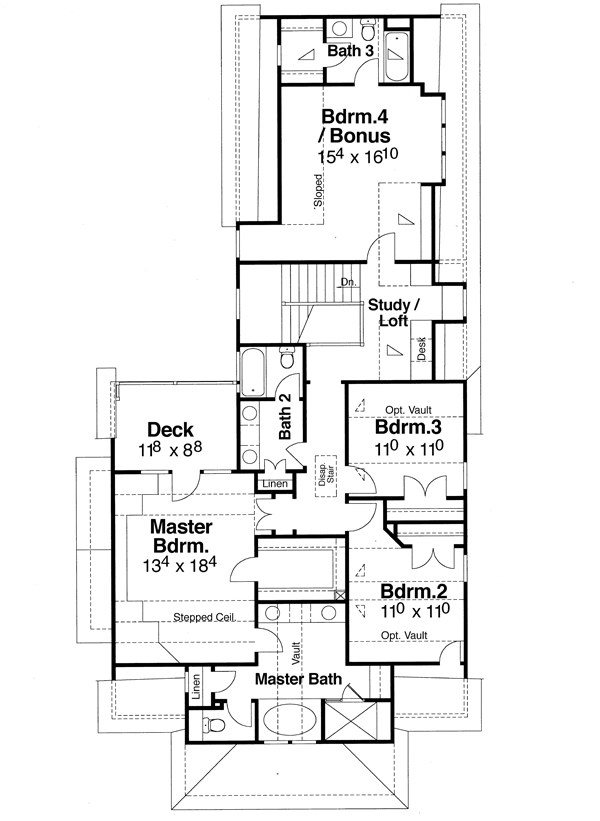

Second Floor:
Second Floor image of Chadwick House Plan
© copyright by designer
Lower Level:
Lower Level image of Chadwick House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:38' 0"
Depth:76' 0"
Dwelling Number:Single
Bonus Access:2nd Floor
  EXTERIOR STYLE
Cottage
Craftsman
Bungalow
PDFs Fast!
Old House Classics
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1294 Sq. Ft.
Upper Level: 1220 Sq. Ft.
Lower Level:1294 Sq. Ft.
Total: 2880 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:528 Sq. Ft.
Porch:192 Sq. Ft.
Deck:144 Sq. Ft.
Bonus Room:366 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:29' 4"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Secondary:4/12
Porch:2/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Bonus Room
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
Guest Suite
Home Office
  KEY FEATURES
Kitchen Island
Laundry 1st Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Rear-entry
Separate Tub and Shower
Suited for narrow lot
Suited for sloping lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
