House Plan HPR-5734

ENERGY STAR Total Living Area: 1870 Sq. Ft.
Main Level: 1159 Sq. Ft.
Second Floor: 711 Sq. Ft.
Lower Floor: 579 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 44 Ft. 4 In.    Depth: 38 Ft.
Garage Size: 2
Foundation: Basement Alternate, WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $725.00
 PDF File  $1,100.00
 Vellums  $1,200.00
 Five Sets of Plans  $1,200.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
 Basement Alternate  $500.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $60.00
 Materials List  $60.00
 Right Read Reverse  $650.00
 Conversion to 2 x 6 Walls  $500.00

For more details about our plan packages click here

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

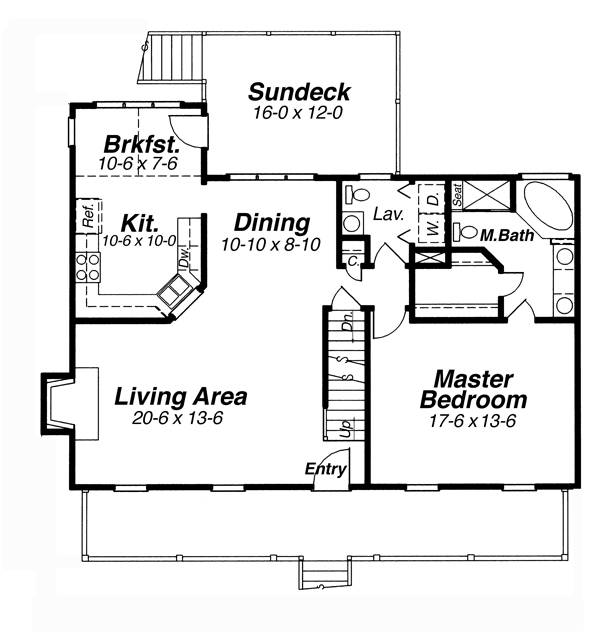

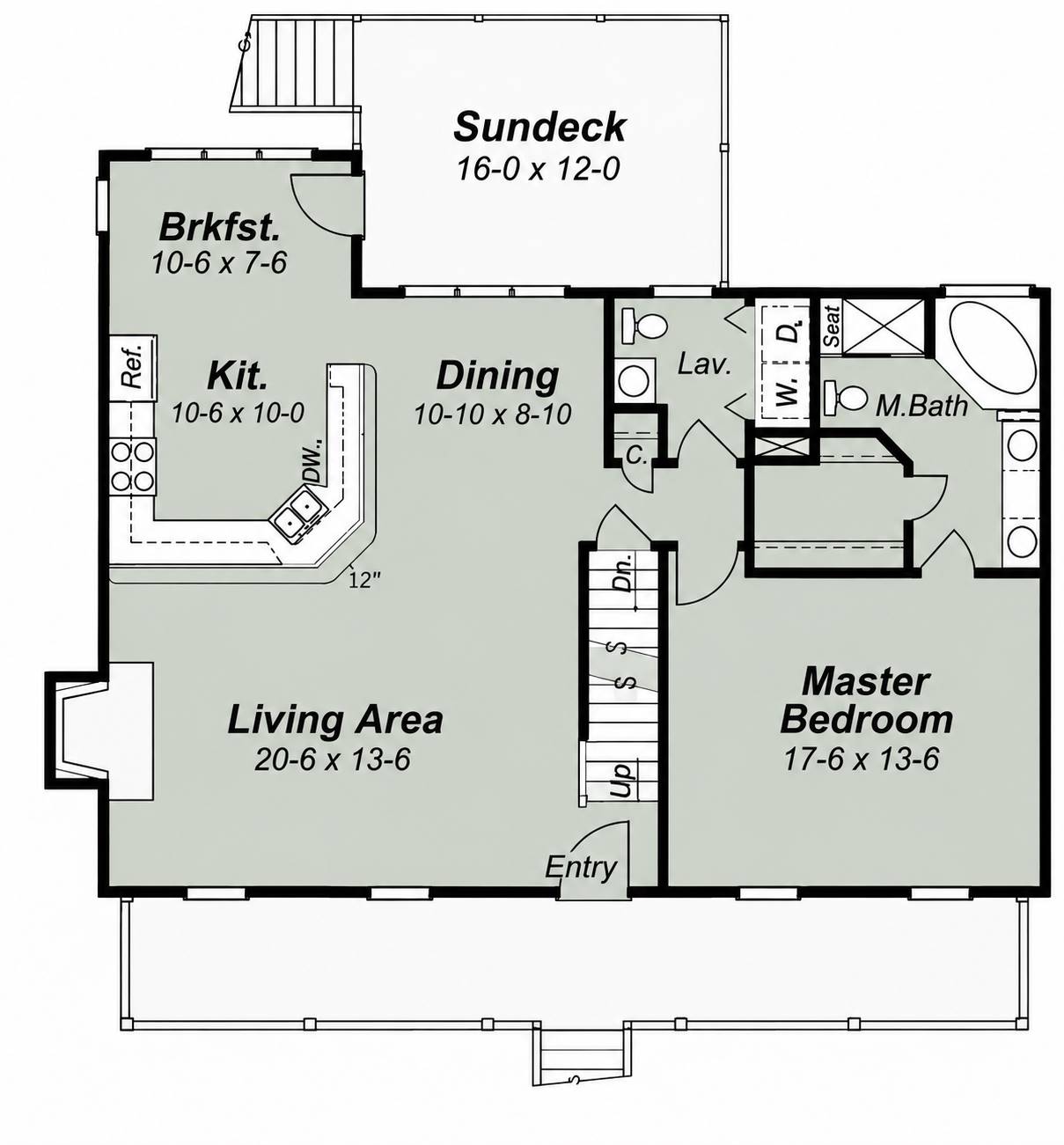

First Floor:
First Floor image of Mount Vernon House Plan
© copyright by designer

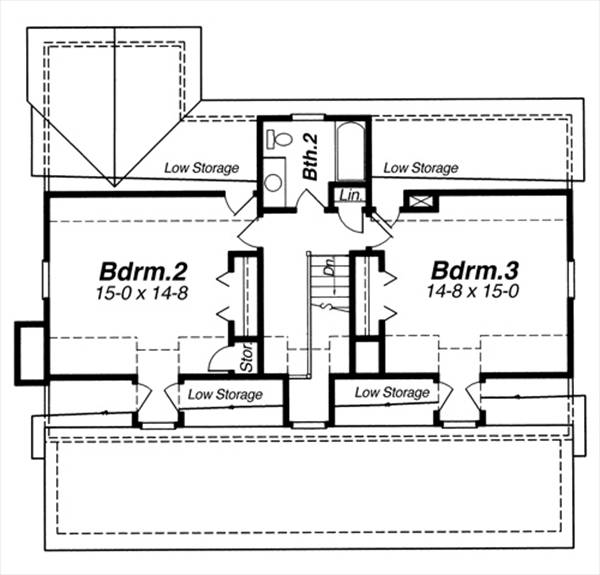

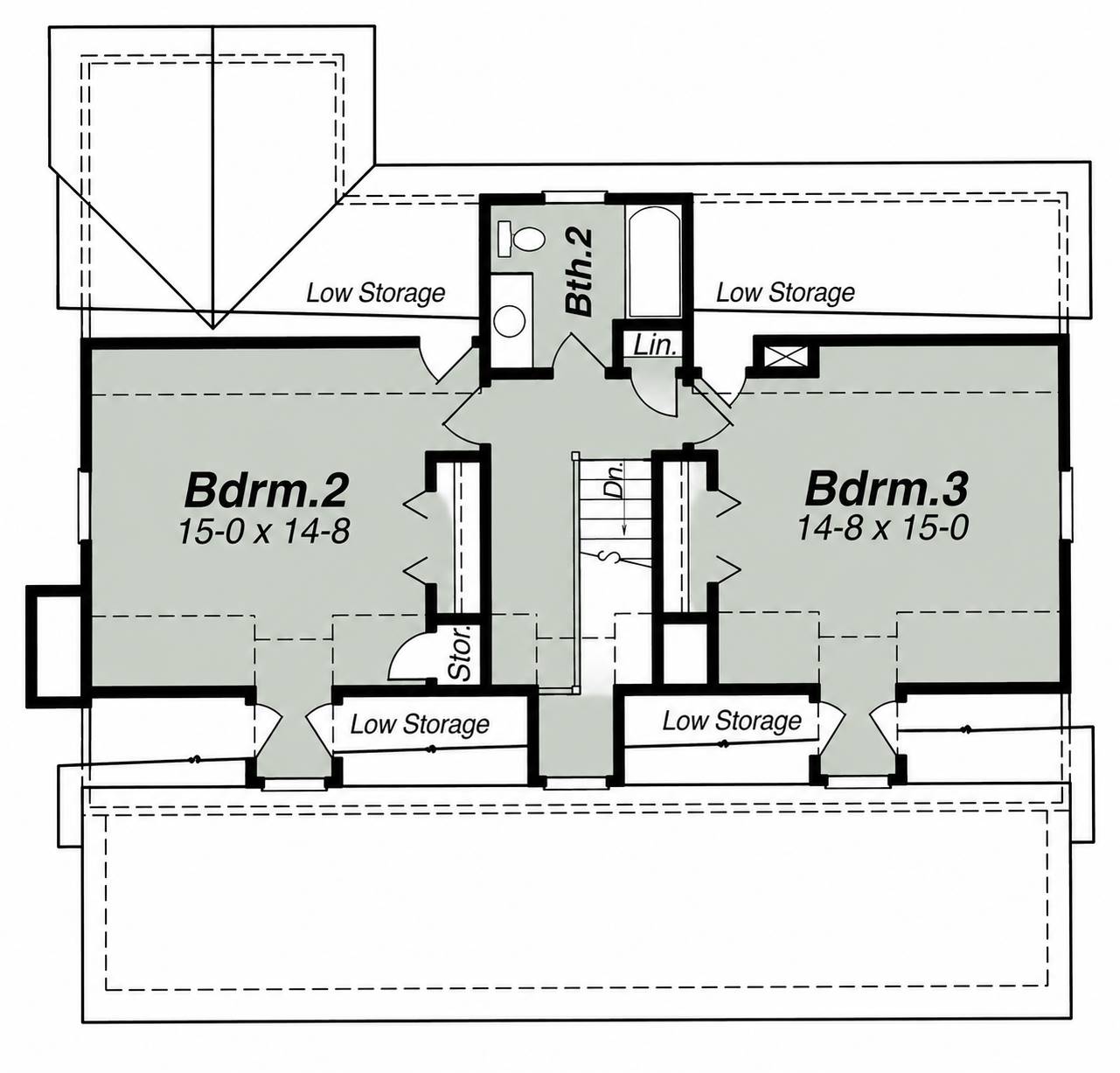

Second Floor:
Second Floor image of Mount Vernon House Plan
© copyright by designer

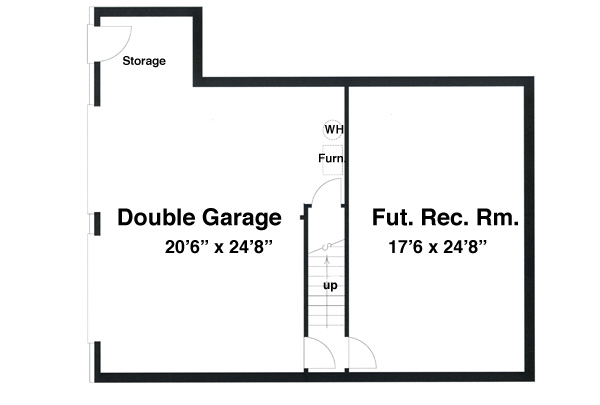

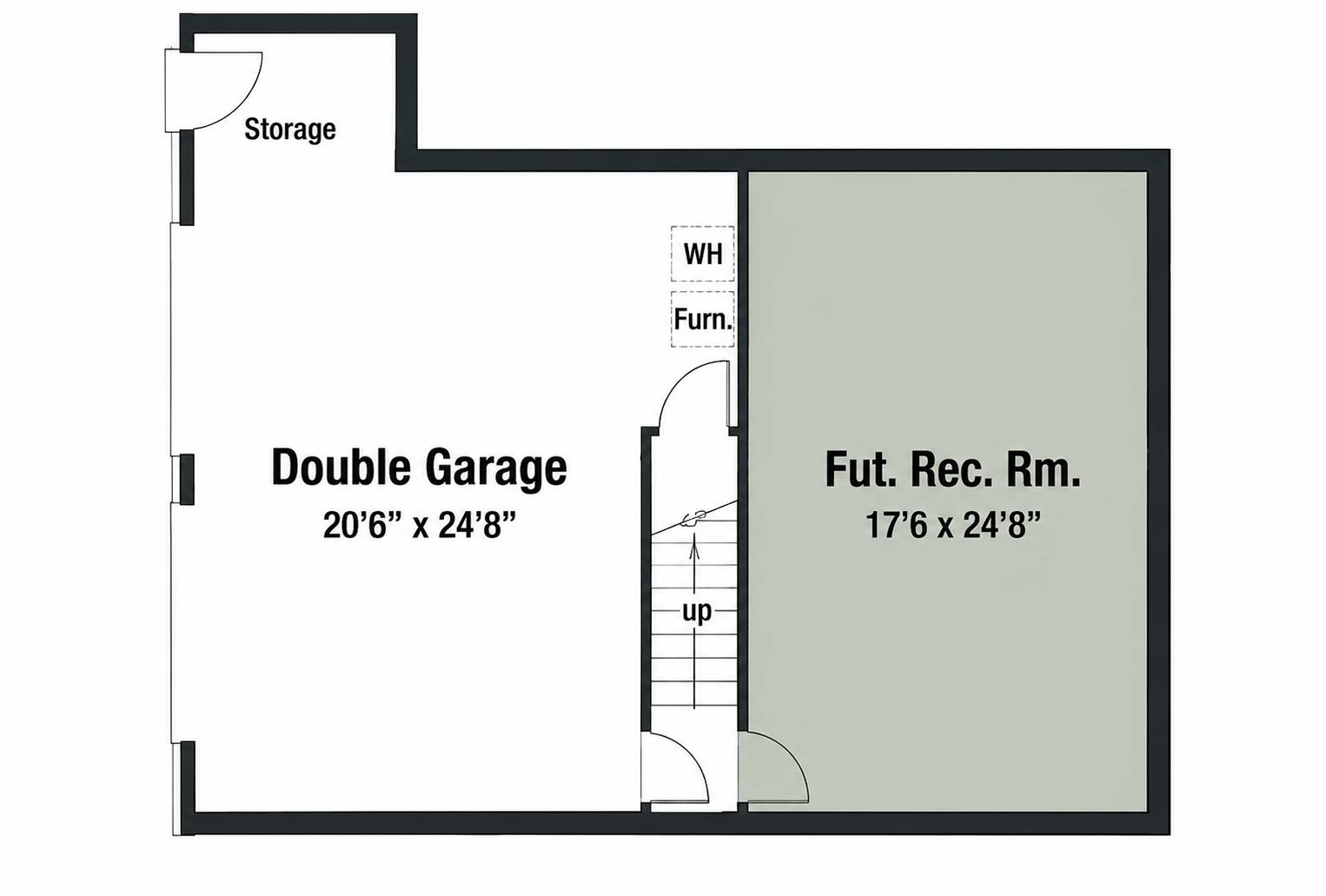

Lower Level:
Lower Level image of Mount Vernon House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:44' 4"
Depth:38' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Cape Cod
Mountain
Country
Farm House
Vacation
PDFs Fast!
Old House Classics
OtherCustom
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1159 Sq. Ft.
Upper Level: 711 Sq. Ft.
Lower Level:579 Sq. Ft.
Total: 1870 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:520 Sq. Ft.
Storage:60 Sq. Ft.
Porch:200 Sq. Ft.
Deck:192 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Basement Alternate
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:25' 7"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Secondary:5/12
Dormer:12/12
Porch:3/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Drive-under
Fireplace
Front Porch
Great Room
  KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Suited for narrow lot
Suited for sloping lot
Walk-in Closet
Walkout Basement
