House Plan HPR-5733

ENERGY STAR Total Living Area: 2859 Sq. Ft.
Main Level: 1912 Sq. Ft.
Second Floor: 947 Sq. Ft.
Bonus: 364 Sq. Ft.
Bedrooms: 4
Full Baths: 3, Half Baths: 1
Width: 86 Ft.    Depth: 51 Ft.
Garage Size: 2
Foundation: Basement Alternate, WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $850.00
 PDF File  $1,325.00
 Five Sets of Plans  $1,450.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
 Basement Alternate  $600.00
ADDITIONAL PLAN OPTIONS
 Right Read Reverse  $800.00
 Conversion to 2 x 6 Walls  $600.00

For more details about our plan packages click here

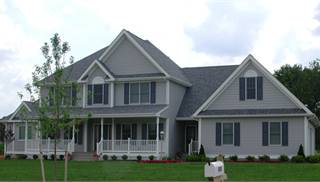

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

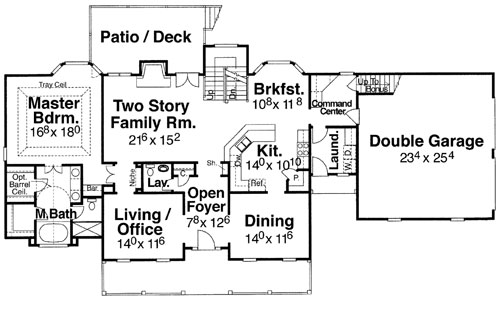

First Floor:
First Floor image of Shenandoah House Plan
© copyright by designer

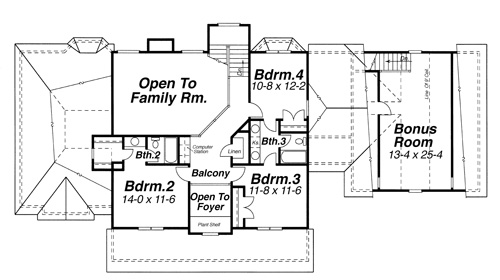

Second Floor:
Second Floor image of Shenandoah House Plan
© copyright by designer

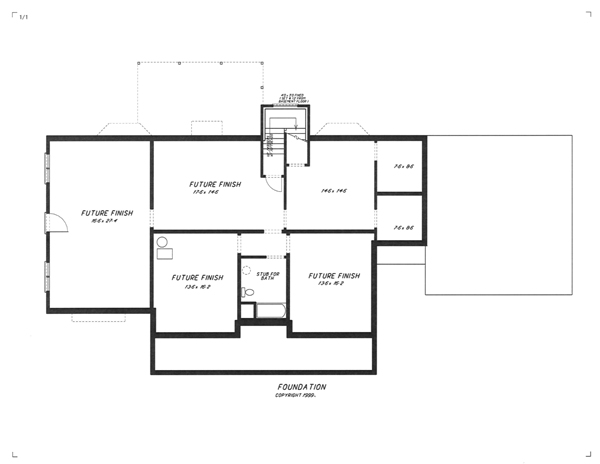

Lower Level:
Lower Level image of Shenandoah House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:86' 0"
Depth:51' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Southern
Farmhouse
PDFs Fast!
Old House Classics
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1912 Sq. Ft.
Upper Level: 947 Sq. Ft.
Total: 2859 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:619 Sq. Ft.
Porch:237 Sq. Ft.
Deck:256 Sq. Ft.
Bonus Room:364 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Basement Alternate
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:31' 8"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Secondary:9/12
Gable:12/12
Porch:3/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Story Volume
Arches
Attached
Basement
Bonus Room
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
His and Hers Master Closets
Home Office
  KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Sitting Area
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
