House Plan HPR-5732

ENERGY STAR Total Living Area: 1683 Sq. Ft.
Main Level: 797 Sq. Ft.
Second Floor: 886 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 44 Ft.    Depth: 34 Ft. 5 In.
Garage Size: 2
Foundation: Crawl Space, Slab, Slab alternate, WALK OUT BASEMENT
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $725.00
 PDF File  $1,100.00
 Five Sets of Plans  $1,200.00
FOUNDATION OPTIONS
 Crawl Space  $0.00
 Slab  $0.00
 WALK OUT BASEMENT  $0.00
 Slab alternate  $500.00
ADDITIONAL PLAN OPTIONS

For more details about our plan packages click here

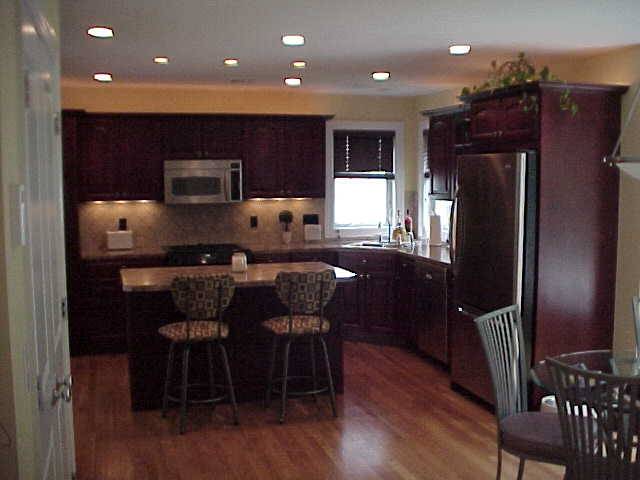

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.
Create an online portfolio of
favorite house plans.
Each week receive our
free e-newsletters.

© copyright by designer

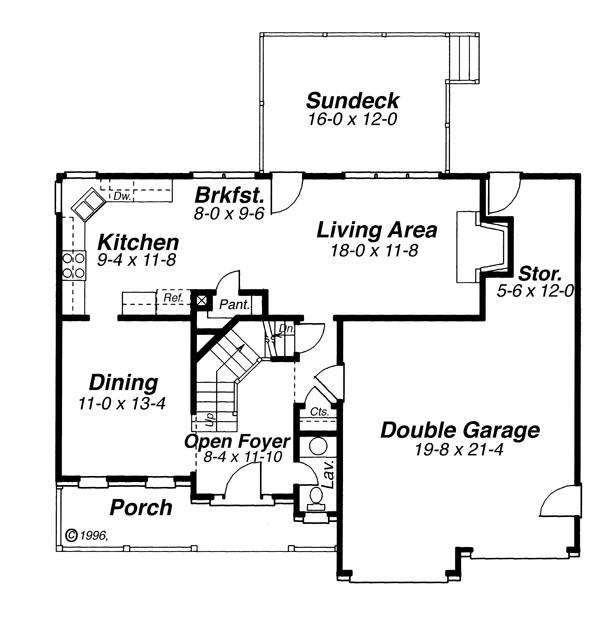

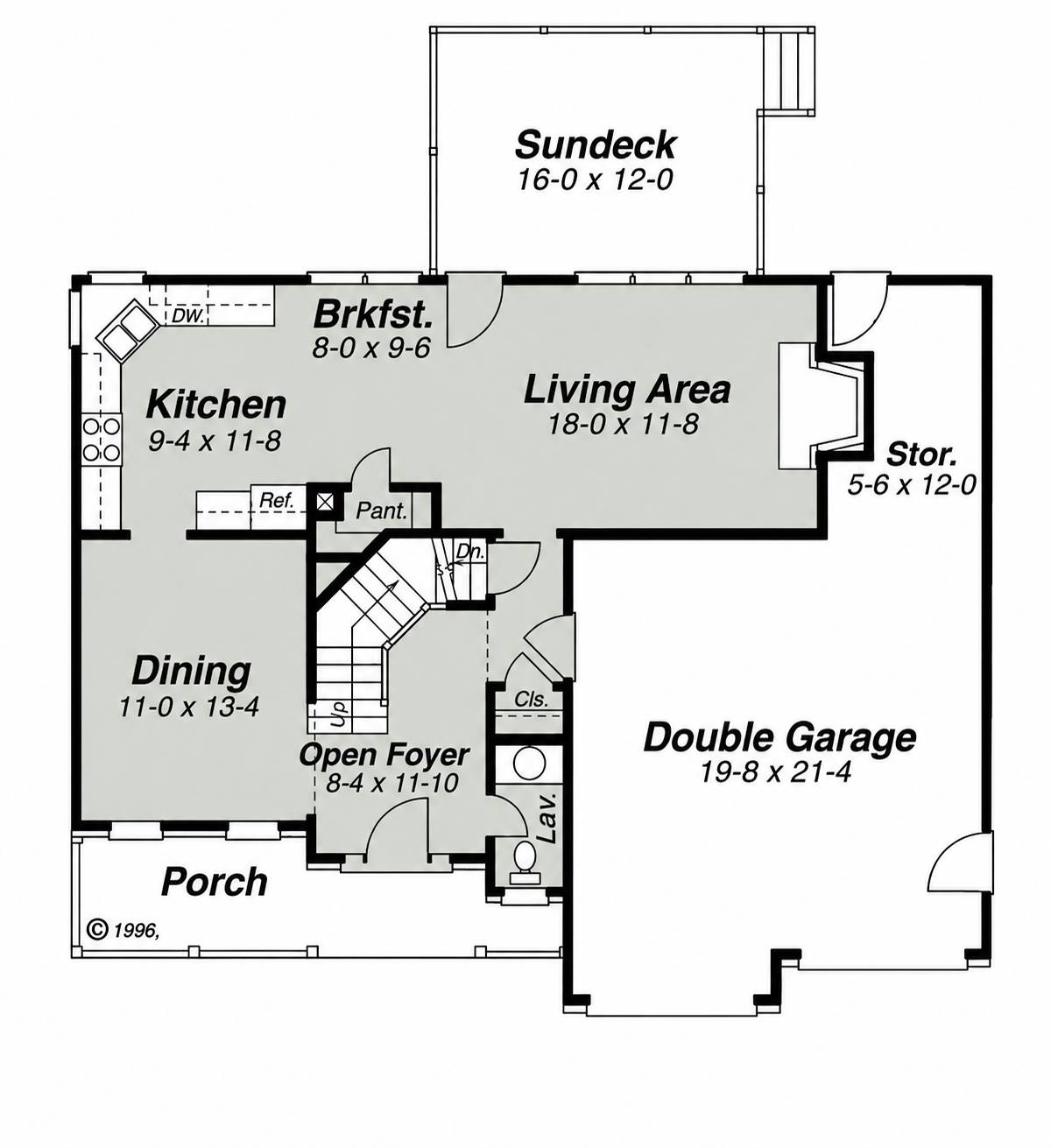

First Floor:
First Floor image of Charlotte House Plan
© copyright by designer

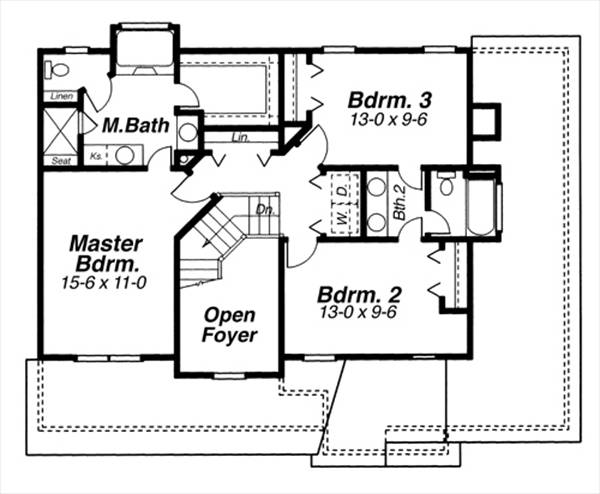

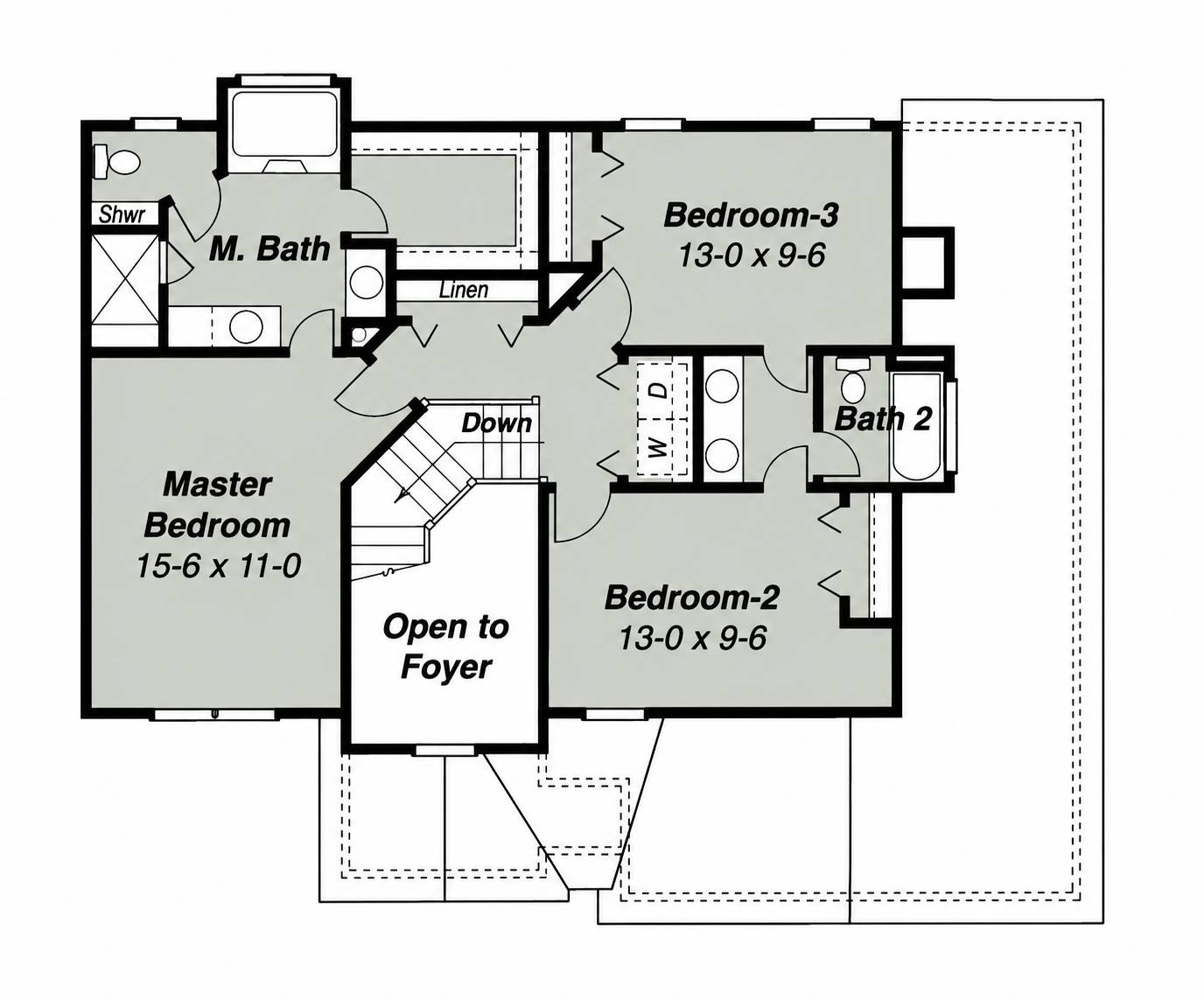

Second Floor:
Second Floor image of Charlotte House Plan
© copyright by designer

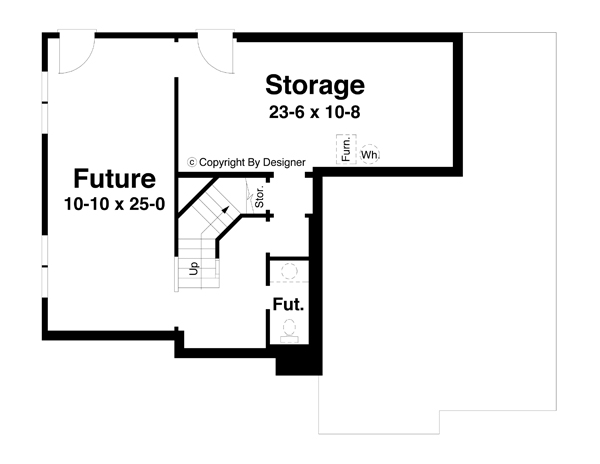

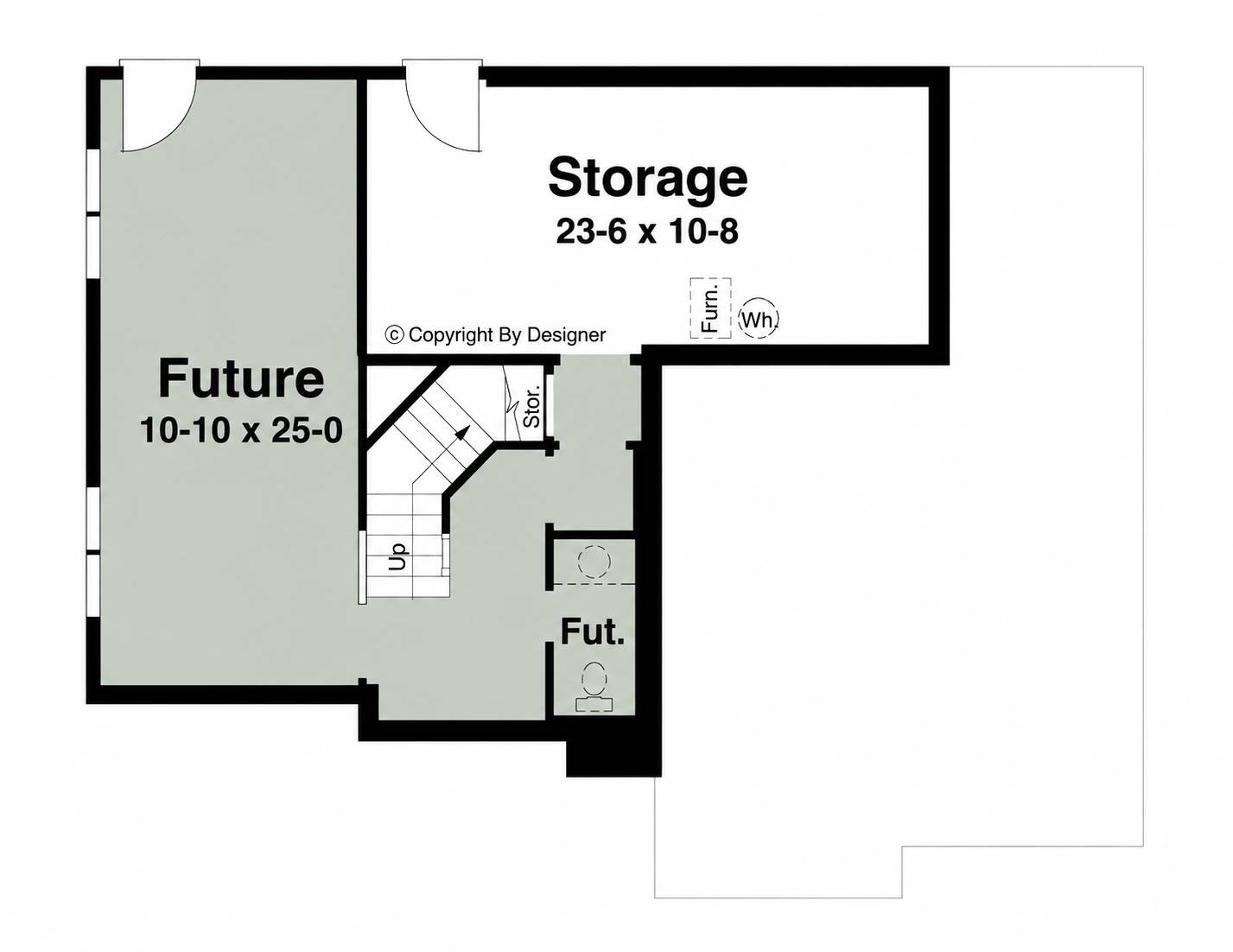

Lower Level:
Lower Level image of Charlotte House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:44' 0"
Depth:34' 5"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Cottage
Farmhouse
PDFs Fast!
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:797 Sq. Ft.
Upper Level: 886 Sq. Ft.
Total: 1683 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:420 Sq. Ft.
Storage:84 Sq. Ft.
Porch:118 Sq. Ft.
Deck:192 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Crawl Space
Slab
Slab alternate
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:29' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:10/12
Gable:12/12
Porch:3/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Story Volume
Attached
Basement
Country Kitchen
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Front-entry
  KEY FEATURES
Great Room
Laundry 2nd Fl
Loft / Balcony
Master Bdrm Upstairs
Open Floor Plan
Separate Tub and Shower
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Walk-in Closet
Walk-in Pantry
Walkout Basement
