House Plan HPR-8997

ENERGY STAR Total Living Area: 2111 Sq. Ft.
Main Level: 1541 Sq. Ft.
Second Floor: 570 Sq. Ft.
Bonus: 337 Sq. Ft.
Bedrooms: 4
Full Baths: 2, Half Baths: 1
Width: 40 Ft. 6 In.    Depth: 64 Ft.
Garage Size: 2
Foundation: Slab, if shown as a standard option
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 Five Sets of Plans  $725.00
 Eight Sets  $825.00
 PDF File  $1,025.00
 Vellums  $1,025.00
 CAD File  $1,450.00
FOUNDATION OPTIONS
 Slab, if shown as a standard option  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $50.00
 Mirror Reverse  $50.00
 Right Read Reverse  $150.00
 New Foundation Type  $250.00
 Conversion to 2 x 6 Walls  $200.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

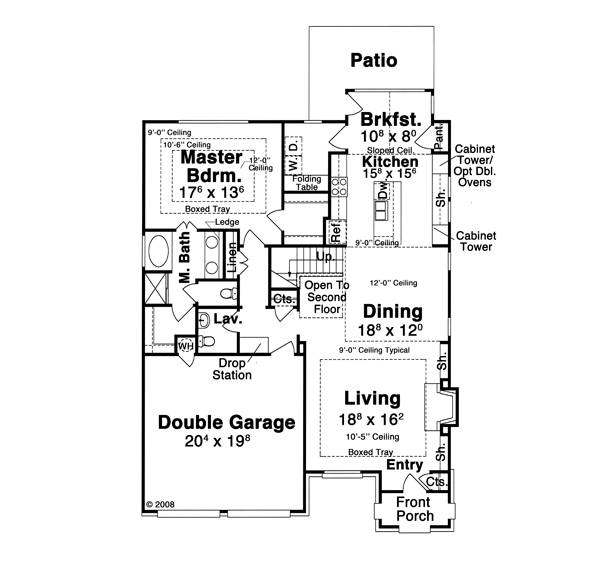

First Floor:
First Floor image of ASCOT House Plan
© copyright by designer

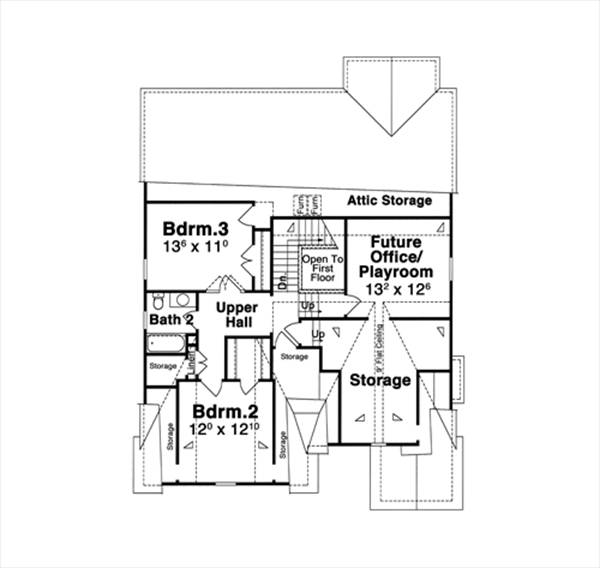

Second Floor:
Second Floor image of ASCOT House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:40' 6"
Depth:64' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Bungalow
European
Cottage
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1541 Sq. Ft.
Upper Level: 570 Sq. Ft.
Total: 2111 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:415 Sq. Ft.
Storage:219 Sq. Ft.
Porch:42 Sq. Ft.
Patio:147 Sq. Ft.
Bonus Room:337 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Slab, if shown as a standard option
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:23' 8"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:14/12
Secondary:10/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Bonus Room
Covered Front Porch
Dining Room
Double Vanity Sink in Master Bath
Fireplace
Formal Living Room
Front Porch
Great Room
His and Hers Master Closets
Home Office/Computer
Kitchen Island
  KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bath - Separate Tub and Shower
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Slab
Storage Space
Unfinished/Future Space
Vaulted/Volume Ceilings
Walk-in Closet
